Compatilbe OXI dispsoable spo2 sensor for MAX-A,MAX-N,MAX-P

Specifications:

1. Connector : 9pin

2. Length : 0.9 meter

3, Cable material :TPU cable

4, Compatible Brand:

• MAX-A (Adult)
• MAX-P (Pediatric)
• MAX-I (Infant)
• MAX-N (Neonate)
• GE:
  • 70124027 (Adult)
  • 70124022 (Pediatric)
  • 70124026 (Infant)
  • 70124032 (Neonate)
• Drager:
  • MX50065 (Adult)
  • MX50066 (Pediatric)
  • MX50067 (Infant)
  • MX50068 (Neonate)
• HP:
  • M1904B (Adult)
  • 989803105481 (Adult)
  • M1903B (Pediatric)
  • 989803111561 (Pediatric)
  • M1902B (Infant)
  • 989803105471 (Infant)
  • M1901B (Neonate)
  • 989803105461 (Neonate)
• Physio Control:
  • 11996-000113 (Adult)
  • 11996-000116 (Pediatric)
  • 11996-000115 (Infant)
  • 11996-000117 (Neonate)

Cable length is 0.9 Meter

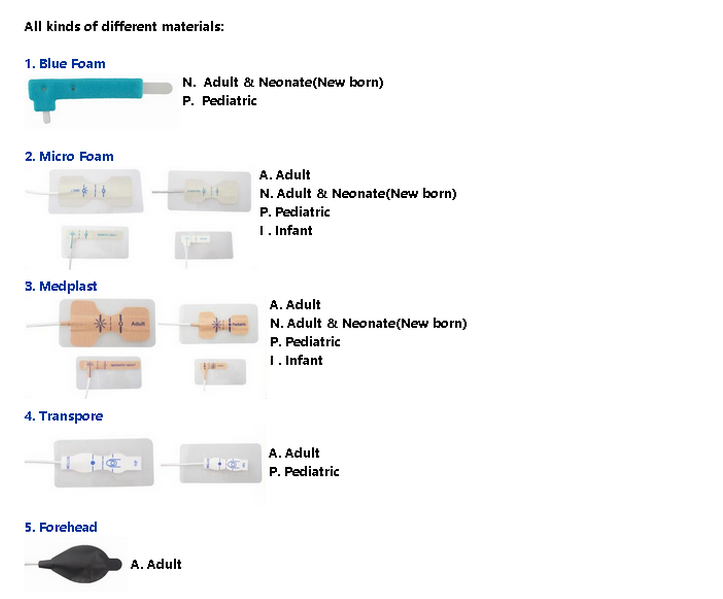

Adult and Pediatric Disposable SpO2 Sensor

Application :Adult>40KG,10-40KG( 3KG-15KG,< 3KG also available)

Application site:Index or other finger

Products features

• Safety: IEC 60601-1-1 approved, conformity with MDD 93/42/EEC and EN9919:2005
• Patient sizes: adult
• Ambient temperature: 0 to 40°C(32 to 104°F)
• Relative humidity: 15% to 95%
• Measurement technology: Tri-wavelength LEDs & photo detector
• LED wavelength: 660nm/880nm/940nm
• SpO2 accuracy: ±3 (70-100%); Unspecified (0-69%)
• Pulse rate range: 20-250bpm
• Pulse rate accuracy: ±3 (20-250bpm)

Main technical parameters:

Process flow

1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
